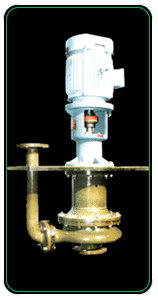

| Model
: DHFT Vertical
Sump F.R.P Pump |
|
|
 |
 |
 |
¢º
Application
For Clean Water. Use of chemical Process.
Enviromental Industries. Sea Water High Temperature
of strong Acid. Water Treating Industries.Waste
Scrubber
¢º Design
And Operation Feature
1. Vertical Construction, Reduced Installation Space
And Suitable For Automatic
Operation
2. Adjustable Side Plate And Impeller
3. Equid With Replaceable Shaft Protection Sleeve
4. Smooth And Stable Operation IS Guaranteed By
The Bearings Securely Supported |
|
 |
|
| ¢Ã
Rating ¢Ã |
| -
Capacity- |
MIN. 50L/MIN
MAX. 4000L/MIN |
| -
Total Head- |
MIN. 3M ~
MAX. 45M |
-
Opereting
Temperature - |
-25¡É to 150¡É |
-
Revolution -
|
1000rpm to
1750rpm |
| -
Shaft Sealing- |
Non |
| -
Meterial - |
RF 1001, RF 1051 |
| -
Standard Code - |
KS, ISO, JIS,
BS, DIN, ASTM |
|
|
|
|
