| Model

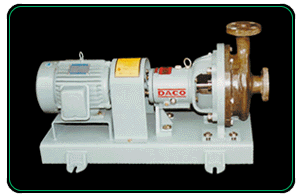

: DHFV Single
Suction Volute F.R.P Pump |
|
|
 |
 |
 |
¢º
Application
For Clean Water. Use of chemical Process.
Enviromental Industries. Oter Various Industries.
High Temperature of strong Acid. Water Treating
Industries.Waste Scrubber
¢º Design
And Operation Feature
1. High Efficiency and Silent Operation by the Design
of Sing Suction Volute
2. Adjustable Side Plate And Impeller
3. Law NPSH Performance
4. Equid With Replaceable Shaft Protection Sleeve
5. Back-Pull Out Design For Low Maintenance And
Downtime |
|
 |
|
| ¢Ã
Rating ¢Ã |
| -
Capacity- |
MIN. 50L/MIN
MAX. 4600L/MIN |
| -
Total Head- |
MIN. 3M ~
MAX. 80M |
-
Opereting
Temperature - |
-25¡É to 150¡É |
-
Revolution -
|
1000rpm to
3600rpm |
| -
Shaft Sealing- |
G.Packing
or Mechanical Seal |
| -
Meterial - |
RF 1001, RF
1051 |
| -
Standard Code - |
KS, ISO, JIS,
BS, DIN, ASTM |
|
|
|
|
