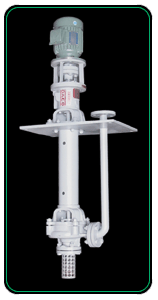

| Model
: DHVT Vertical
Sump Pump |
|
|
 |
 |
 |
¢º
Application
For Clean Water. Use of chemical Process.
Enviromental Industries. Oter Various Industries.
High Temperature of strong Acid. Water Treating
Industries.Waste Scrubber
¢º Design
And Operation Feature
1. Vertical Construction, Reduced Installation Space
And Suitable For Automatic Operation
2. Adjustable Side Plate And Impeller
3. Equid With Replaceable Shaft Protection Sleeve
4. Smooth And Stable Operation IS Guaranteed By
The Bearings Securely Supported
5. Special Materials Or Casting For Specific Liquid
Pumping |
|
 |
|
| ¢Ã
Rating ¢Ã |
| -
Capacity- |
MIN. 50L/MIN
MAX. 4200L/MIN |
| -
Total Head- |
MIN. 3M ~
MAX. 70M |
-
Opereting
Temperature - |
-25¡É to 150¡É |
-
Revolution -
|
1000rpm to
1750rpm |
| -
Shaft Sealing- |
Non |
| -
Meterial - |
|
| -
Standard Code - |
KS, ISO, JIS,
BS, DIN, ASTM |
|
|
|
|
