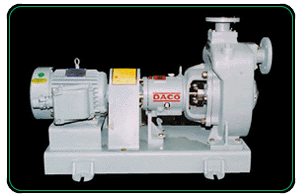

| Model
: DHSP Single
Priming Volute Pump |
|
|
 |
 |
 |
¢º
Application
For Clean Water. Use of chemical Process.
Enviromental Industries. Oter Various Industries.
High Temperature of strong Acid. Water Treating
Industries.Waste Scrubber
¢º Design
And Operation Feature
1. With This Model a Foot Valve Is Not Need
2. Adjustable Side Plate And Impeller
3. Even In Case That Reversing Function ISO Out
Of
Order And The Water In the
Discharge Pipe Goes
Back Down Into The Well.
Re-Self Priming Is
Possible Even With Only
The Water Remaining in
The Pump Casing
4. Special Materials Or Casting For Specific Liquid
Pumping
5. Equid With Replaceable Shaft Protection Sleeve
6. Back-Pull Out Design For Low Maintenance And
Downtime |
|
 |
|
| ¢Ã
Rating ¢Ã |
| -
Capacity- |
MIN. 50L/MIN
MAX. 4000L/MIN |
| -
Total Head- |
MIN. 3M ~
MAX. 60M |
-
Opereting
Temperature - |
-25¡É to 70¡É |
-
Revolution -
|
1000rpm to
3600rpm |
| -
Shaft Sealing- |
G.Packing
or Mechanical Seal |
| -
Meterial - |
GC200, SC,
SSC13, SSC14, SSC16, ALLOY20, CD4MCU,
CAPENTER20CB3, DURMET, HASTELLOY |
| -
Standard Code - |
KS, ISO, JIS,
BS, DIN, ASTM |
|
|
|
|
