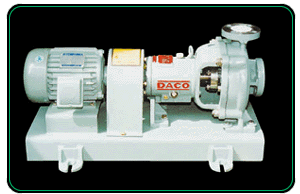

| Model
: DHLV Single
Suction Lining Volute Pump |
|
|
 |
 |
 |
¢º
Application
For Clean Water. Use of chemical Process.
Enviromental Industries. Oter Various Industries.
High temperature of strong Acid. Petrochemical
Industries. High Temperature Of Acids
¢º Design
And Operation Feature
1. Full Compliance With ISO 2858 Specification
2. Adjustable Side Plate And Impeller
3. Strong Stick in the Vacuous Condition
4. Equid With Replaceable Shaft Protection Sleeve
5. Back-Pull Out Design For Low Maintenance And
Downtime
6. Elaborate Balance by Precise Impeller Steal Mold |
|
 |
|
| ¢Ã
Rating ¢Ã |
| -
Capacity- |
MIN. 50L/MIN
MAX. 4800L/MIN |
| -
Total Head- |
MIN. 3M ~
MAX. 80M |
-
Opereting
Temperature - |
-25¡É to 150¡É |
-
Revolution -
|
1000rpm to
3600rpm |
| -
Shaft Sealing- |
G.Packing
or Mechanical Seal |
| -
Meterial - |
ETFE, PFA,
RUBBER |
| -
Standard Code - |
KS, ISO, JIS,
BS, DIN, ASTM |
|
|
|
|
